Compact Above-Grade Valve and Control Station

A Complete Packaged Solution with Lightweight Aluminum Construction

USEMCO’s TopVault is an above-grade, lightweight aluminum construction station with piping, valves, and controls. Designed for all 2-, 3-, or 4-inch submersible grinder pump applications, new or retrofit, utilizing smaller piping. The station arrives complete for pairing with your supplied pumps for mounting on new or existing fiberglass or concrete wet wells. The wide doors provide easy access to piping, valves, and controls. Simply mount the TopVault on the wet well, connect main power and wet well piping, and it’s ready to run.

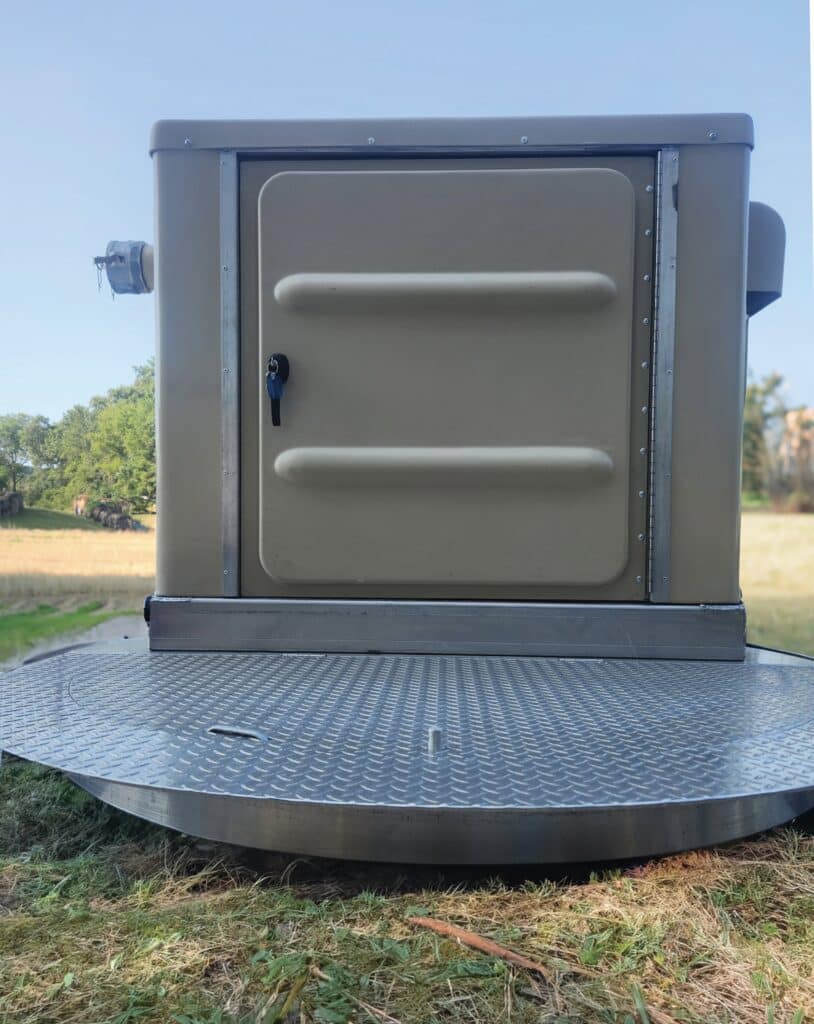

TopVault updated design sitting outside showing the front view.

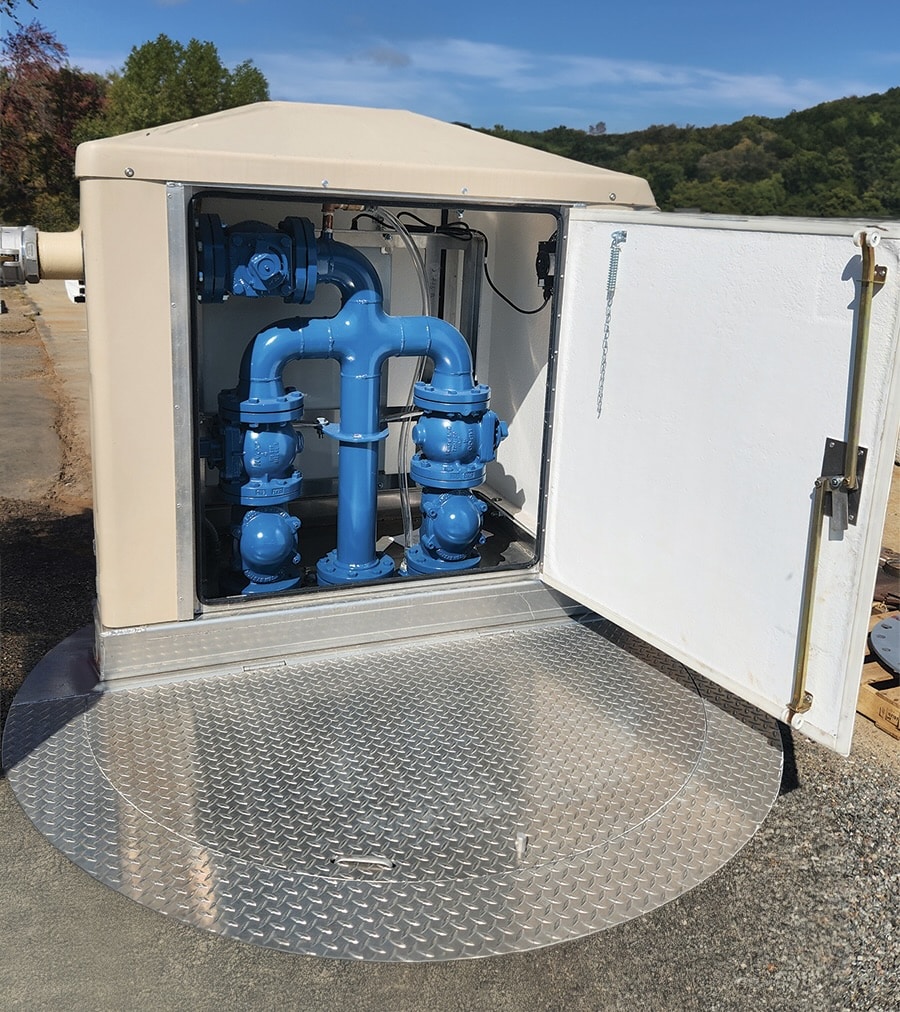

USEMCO TopVault with hinged door open for access to controls and valves

The TopVault features a lightweight aluminum base designed for long service life and economical installation, eliminating the need for a poured concrete support base. An integrated ring fits the inside diameter of the wet well.

USEMCO TopVault pump station sitting outside the factory

Features of TopVault

TopVault combines essential valve and control components in a compact, above-grade package. Lightweight aluminum construction and a removable fiberglass enclosure provide a practical solution designed for easy installation and convenient maintenance access.

  • Duplex submersible or grinder pump station

  • Lightweight aluminum modular construction

  • Aluminum wet well access doors for pump removal

  • Removable fiberglass enclosure with access doors for controls & valves

  • USEMCO NEMA 1 fully-featured UL 698A control panel with intrinsically safe extensions

TopVault Specifications

  • 2”, 3”, or 4” pipe & valve sizes

  • 4’, 5’, or 6’ wet well diameters

    • (4″ piping in 5′ and 6′ diameters wet well only)
  • 300 PSF rated

  • Automatic heat & exhaust

  • Insulated R7 enclosure

  • Submersible transducer with backup floats

  • Single to 3 phase conversion up to 34 FLA maximum

  • VFD phase conversion up to 28 FLA

USEMCO TopVault pump station outside of the factory getting ready to ship.

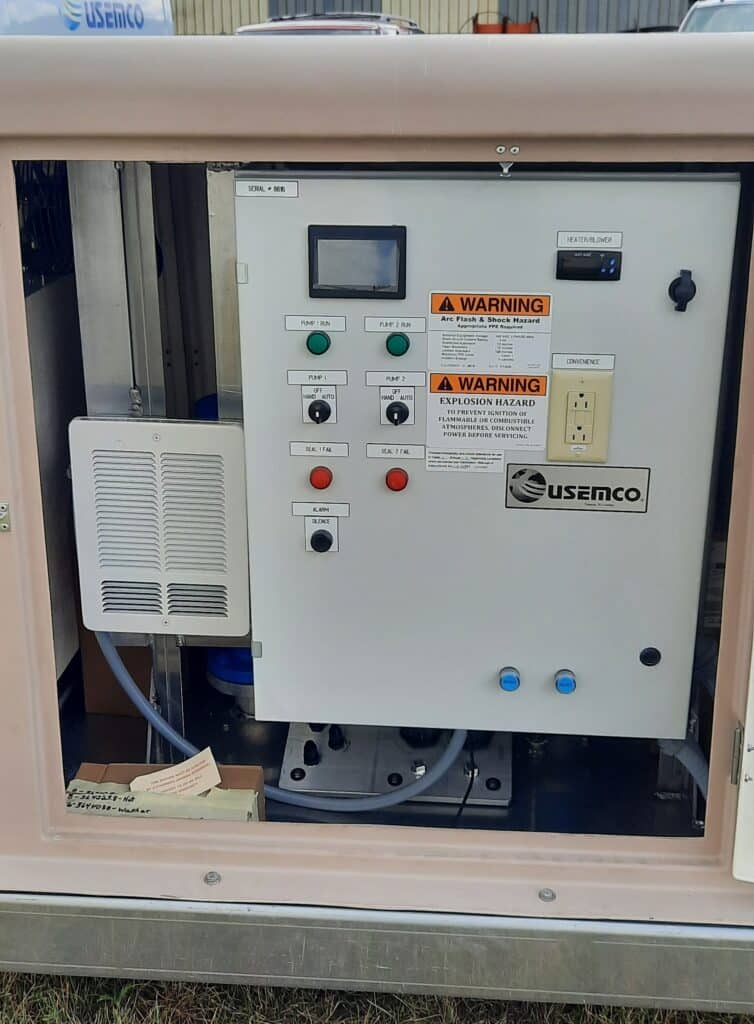

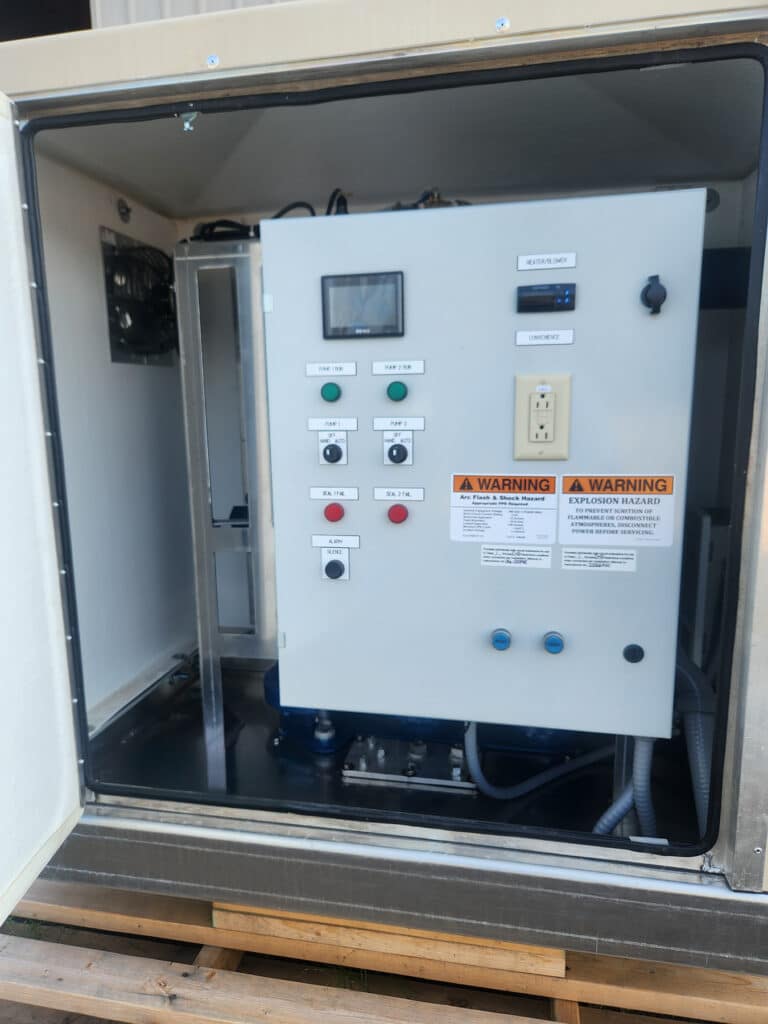

  • TopVault with open door showing the control panel.
  • TopVault control panel up close showing screen on.

Control Panel System

A fully featured UL 698A control panel with intrinsically safe extensions is mounted behind the valves.

  • Pump run lights

  • HOA switches

  • Seal/fail light alarms

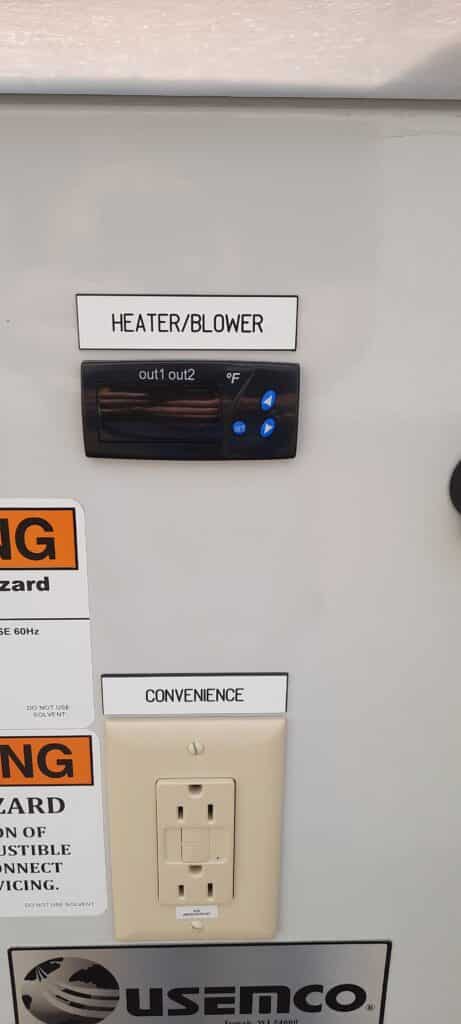

  • Thermostat to automatically control the heater and exhaust fan

  • GFI convenience receptacle is standard for powering lights and tools

Sentry Lite Touchscreen Controller

Control panels are paired with USEMCO’s Sentry Lite Pump Controller to provide automated operation and control of submersible pumps installed in the wet well.

  • USEMCO SENTRY Lite touchscreen pump controller
  • Sentry Lite controller showing the status screen.

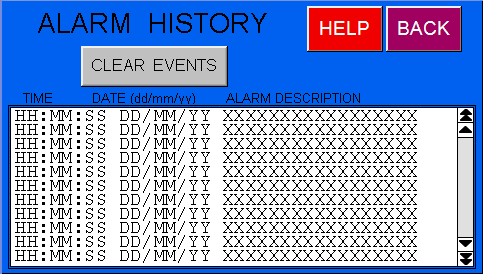

  • Sentry Lite controller showing the events screen.

USEMCO Web Station


Optional Web Station for real-time cloud-based monitoring of your pump station. Your cell phone, tablet or computer can view station status, acknowledge alarms, and remote trouble shoot.

USEMCO Web-Station installed in TopVault station

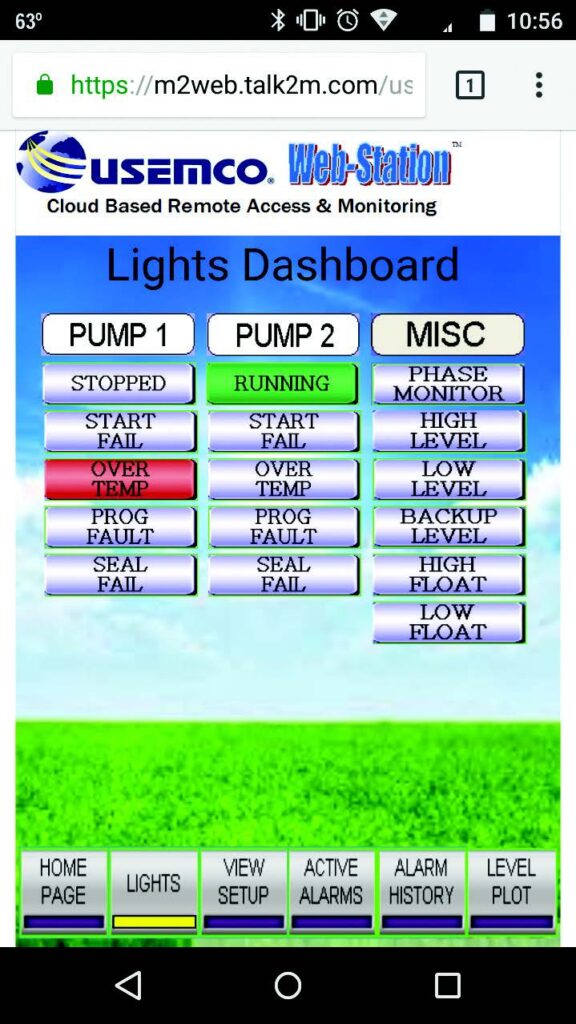

Screen of Web Station.
USEMCO Web-Station cloud-based software
