Prefabricated Submersible Pump Stations
A Complete Packaged Solution
USEMCO’s submersible pump stations are prepackaged wastewater lift stations designed to collect and pump sewage or stormwater from a wet well to a higher elevation. Custom-built below-grade stations to project specifications and factory assemble the pumps, piping, valves, controls, and accessories before shipment. The stations can be manufactured with fiberglass or steel material.
USEMCO cut-away submersible stations are built in diameters ranging from 4′ to 12′ and lengths up to 40′, offering flexibility for a wide range of municipal and industrial applications. Each station is coated with 32 mils of coal tar epoxy for long-term corrosion protection and durability in harsh wastewater environments. Guide rails and base elbows are factory-installed to simplify installation and maintenance in the field, and the stations are designed to work with virtually any submersible pump configuration to meet specific project needs.

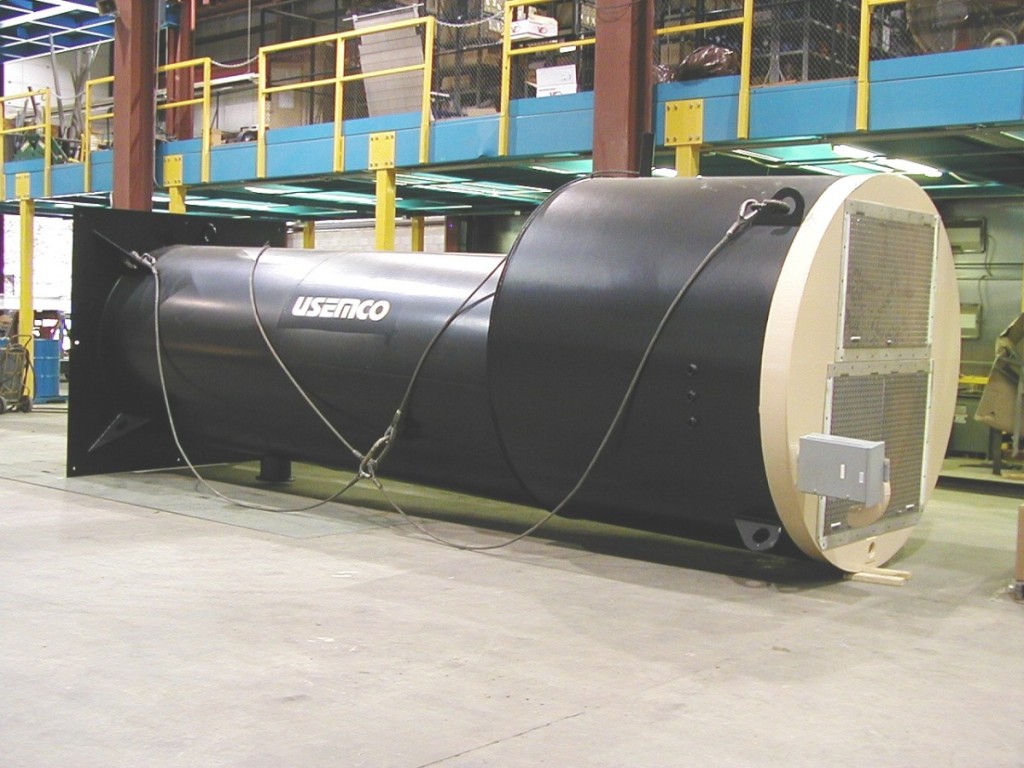

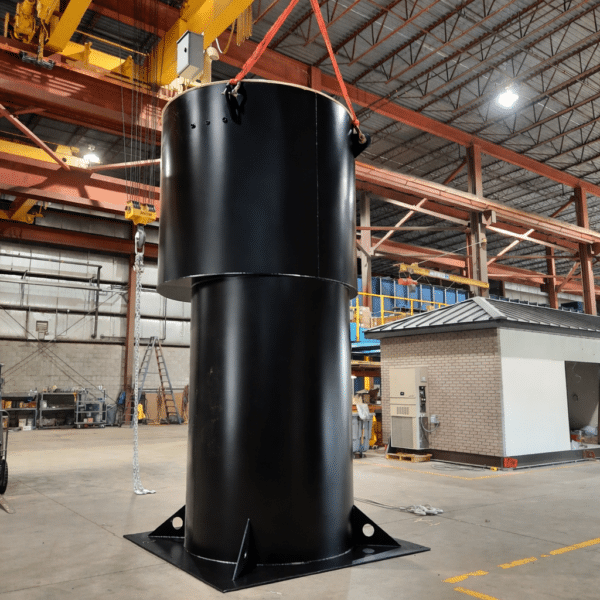

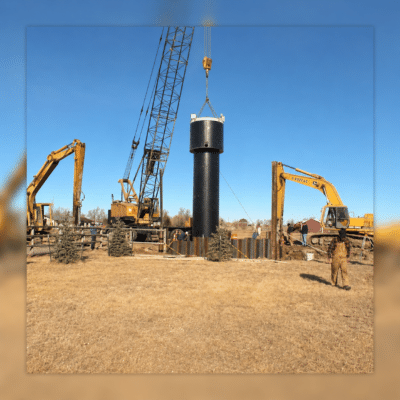

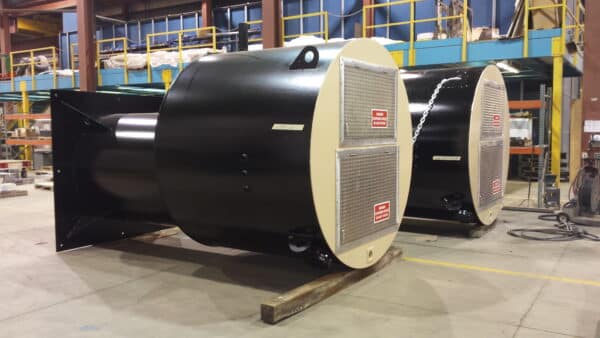

Steel Submersibles
Steel submersible stations are typically used for larger municipal and industrial applications where maximum strength, durability, and customization are needed. USEMCO fabricates, welds, blasts, and coats the steel in-house, giving us full control over quality and lead times. These stations can be built in diameters from 4′ to 12′ and lengths up to 40′, with coatings designed to resist corrosion and harsh wastewater environments

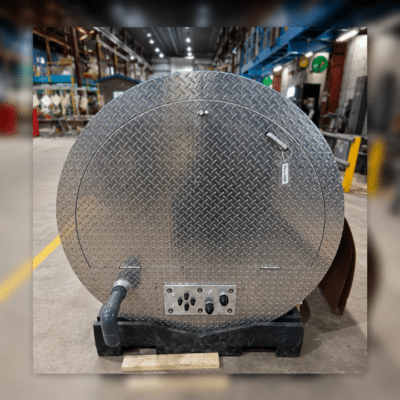

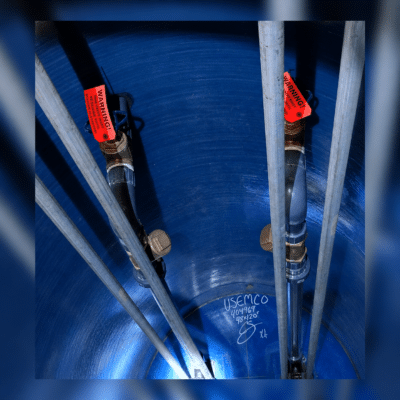

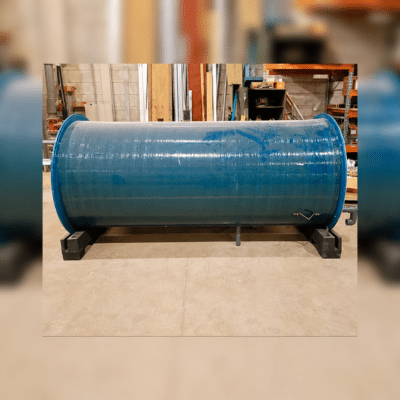

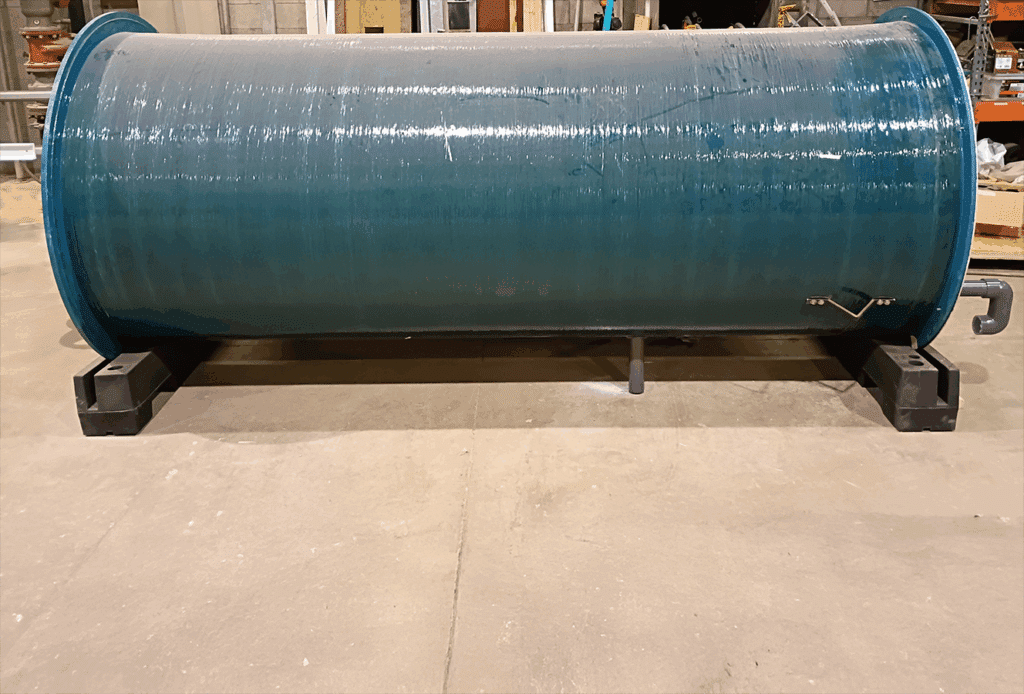

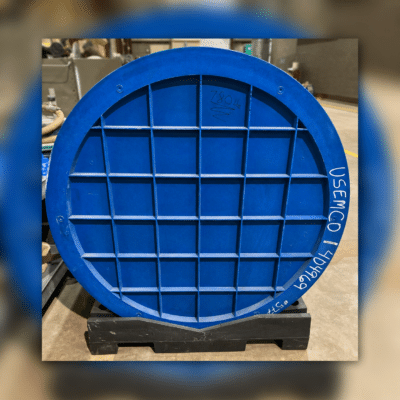

Fiberglass Submersibles
Fiberglass submersible stations provide a lightweight, corrosion-resistant alternative that is ideal for many municipal and commercial lift station applications. Fiberglass construction helps reduce installation costs and simplifies transport and placement while still offering long service life.
Built to Fit Your Application
Will a USEMCO Submersible Pump Station fit your needs? Of course it will, because each Submersible Pump Station is built to your specifications. You choose the capacity, pumps, level controls (Float or Transducer), and valves.
Quick Delivery and Easy Installation
Forget everything you’ve ever known about long lead time and expensive on-site assembly…Your USEMCO Submersible Pump Station can ship in 6 to 8 weeks after you place your order. It is fully assembled and tested by our technicians before shipment. Conventional pump stations require your excavation site be open for weeks. With the USEMCO Submersible Pump Station, that time can easily be cut to one or two days. Your USEMCO pump station arrives in one piece and is ready to go to work upon arrival to your job site. You’ll save time and money!
Sole Source Warranty
The USEMCO Warranty offers the best protection available today – the USEMCO Submersible Pump Station is guaranteed against exterior leaks or exterior rust-through. Plus, you have the added security of USEMCO as a single source warrantor for all the vital components of your pump station; valves, pump, hatches and control panels.
Features
- An anti-flotation plate anchors the USEMCO Submersible Pump Station securely when conditions don’t allow a concrete pad.

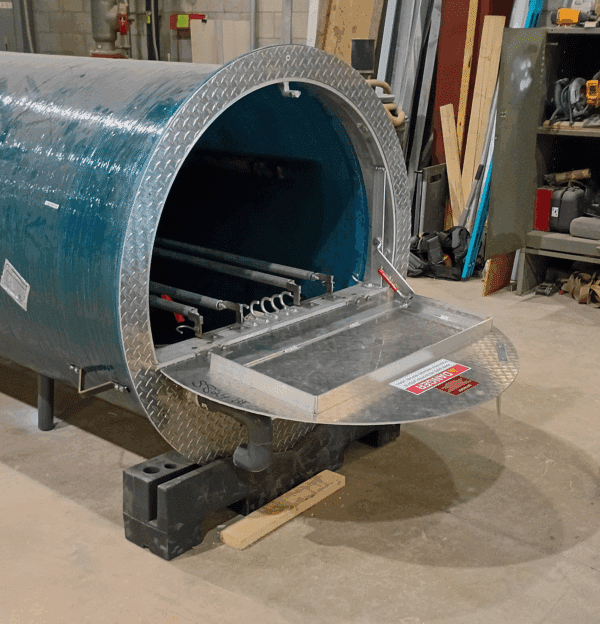

- Lightweight aluminum hatches with positive lock-open device.
- A discharge outlet well below the frost line means you never worry about freezing.
- The integral valve chamber is self-draining for easy maintenance.
- 2 Year Warranty against leaks or rust-through.
You Choose
- Capacity
- Duplex or triplex pump chamber
- Float or submersible transducer level controls
- Optional emergency bypass piping
