Compact. Versatile. UL Certified.

The Power Pack UL® 508 listed pump control panel is your cost-effective solution for basic pump operations and alarms. These compact (24 x 24 x 12 inch) stainless steel panels are compatible with any pump using resistive seal probes including: Barnes, Chicago, HOMA, Hydromatic, Myers, PACO, PumpEx, Yeomans, and ABS.

Download Brochure

All non-proprietary components.
NEMA 4X SS enclosure- pad lockable
Inner door
Main lugs
Lightning arrestor
Phase monitor with line fuses
Pump circuit breakers
IEC rated FVNR starters
Ambient compensated overloads & resets
H-O-A’s
Run lights
Run-time meters
High-level dry alarm contact
Control transformer
Condensation heater
Thermostat
Lag delay timer
Alternator w/sequence selector
Adjustable seal fail relays
Alarm light, buzzer with silence Overtemp shutdown
Seal fail alarm lights
Mounting brackets
Factory wired and tested
28 FLA max per pump Resistive probe seal fail relay

Power Pack UL®

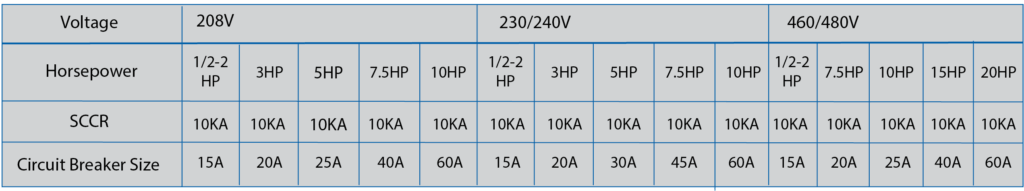

The Power Pack duplex control panels are available in the following 3 phase configurations for pumps not exceeding 28 full load amps per pump.

Single-phase configurations available with capacitor and relay kits supplied by customer.

The Power Pack UL® rated pump control panel is your low-cost quality solution for basic pump operation and alarms. These compact (24” x 24” x 11”) stainless steel panels are in stock and ready for immediate shipment. Private labeling is available for quantity orders.
When you need more than basic control and operation we offer the Sentry Mini with I/O capabilities for use in your existing SCADA system.

OPTIONAL SENTRY MINI TOUCHSCREEN PUMP CONTROLLER
