Above-Grade Pump Station for Larger Applications

A Complete Packaged Solution

Following the standard, USEMCO PumpMate is the Tall PumpMate, a packaged one-piece valve and control station. Designed for larger piping applications and wet wells with diameters of 8 feet or greater. All components are above ground, allowing for quick and easy access to controls or piping.

USEMCO Tall PumpMate showing the piping of the station
USEMCO Tall PumpMate showing control panel side of station
USEMCO Tall PumpMate fully assembled in factory

Benefits of Tall PumpMate

The Tall PumpMate is delivered fully assembled from our facility and packaged with the components selected for your application, creating a streamlined, drop-in-place installation.

  • Complete packaged stations

  • All components above-ground

  • Quick delivery

  • Low costs

  • Single source responsibility

Features of Tall PumpMate

Two oversized insulated hinged doors provide convenient access to the piping and controls, while a cast-reinforced concrete base offers a durable foundation for the station. Controls are paired with USEMCO’s Sentry constant- or variable-speed controllers. Its insulated, heated enclosure offers weather protection, while the aluminum access hatch allows for easy pump removal. Each station is configured to meet project requirements and delivered ready for installation.

  • Added space for larger piping applications

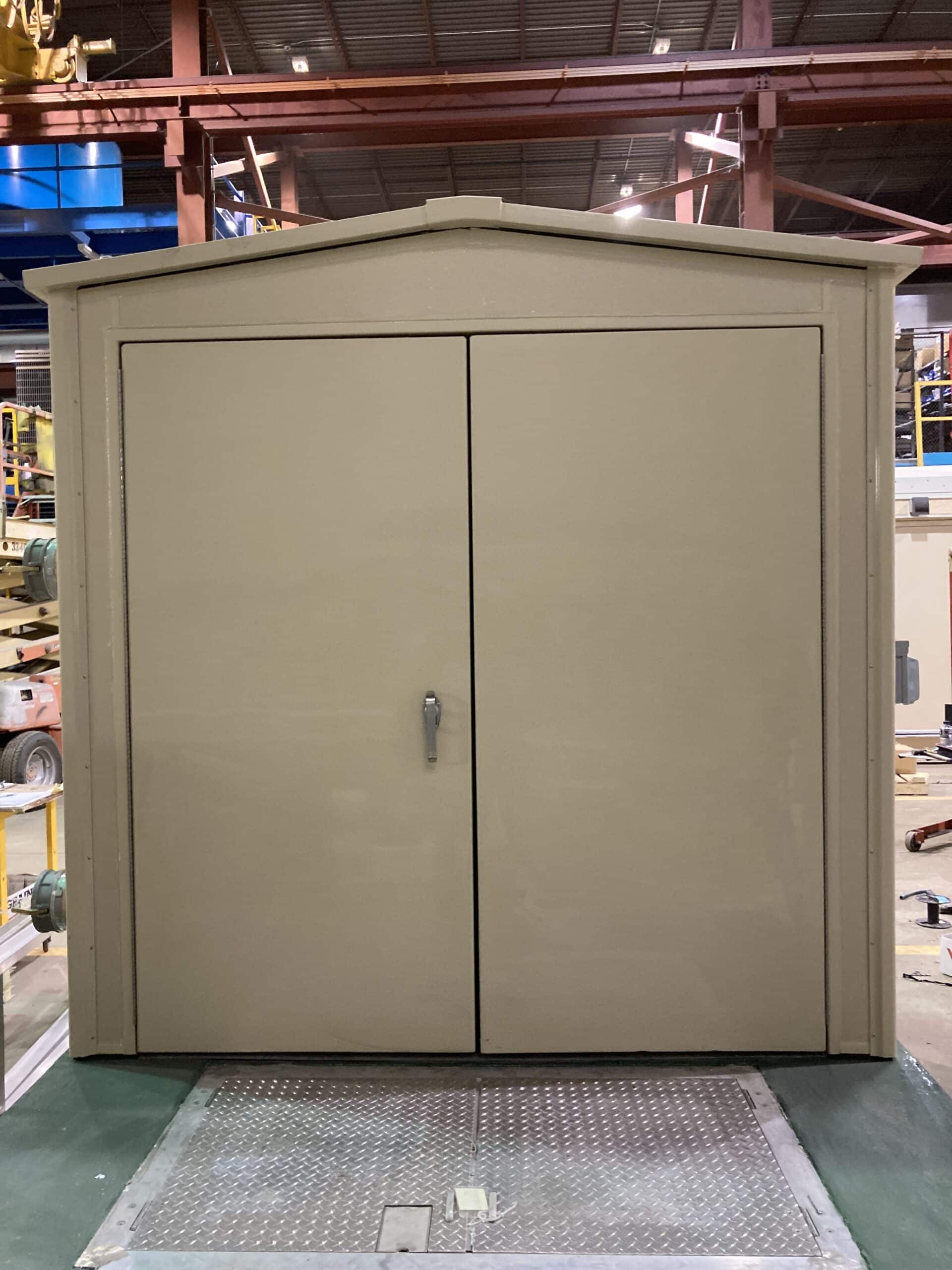

  • Insulated and heated, weather-tight enclosure

  • Over sized hinged doors

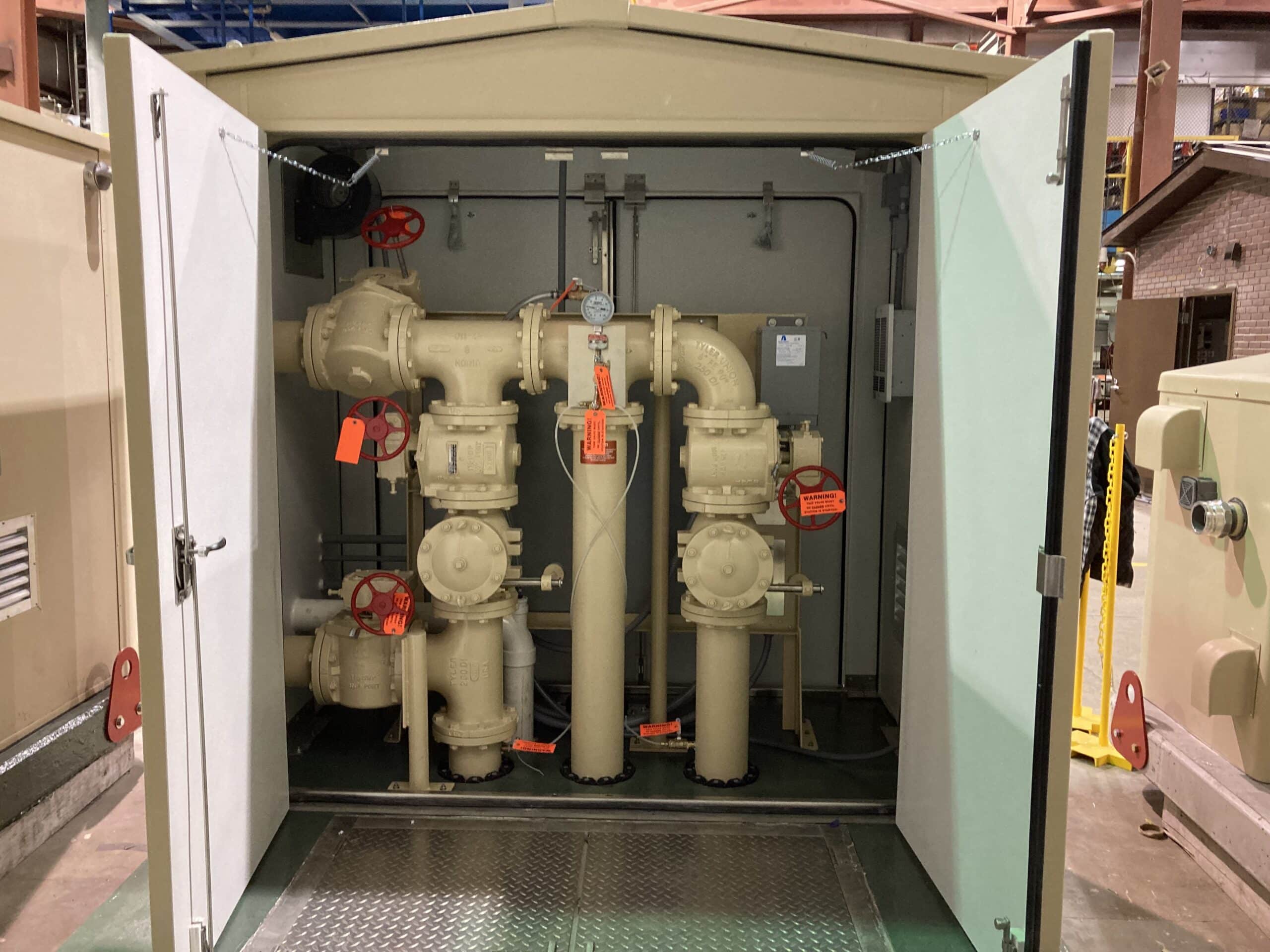

  • Front door access to valves and piping

  • Rear door access to control panel

  • Aluminum hatch for wet well access and pump removal

  • 1/2-inch aluminum base plate for float and transducer connections

  • Control components selected to meet project requirements

USEMCO Tall PumpMate installed in the field

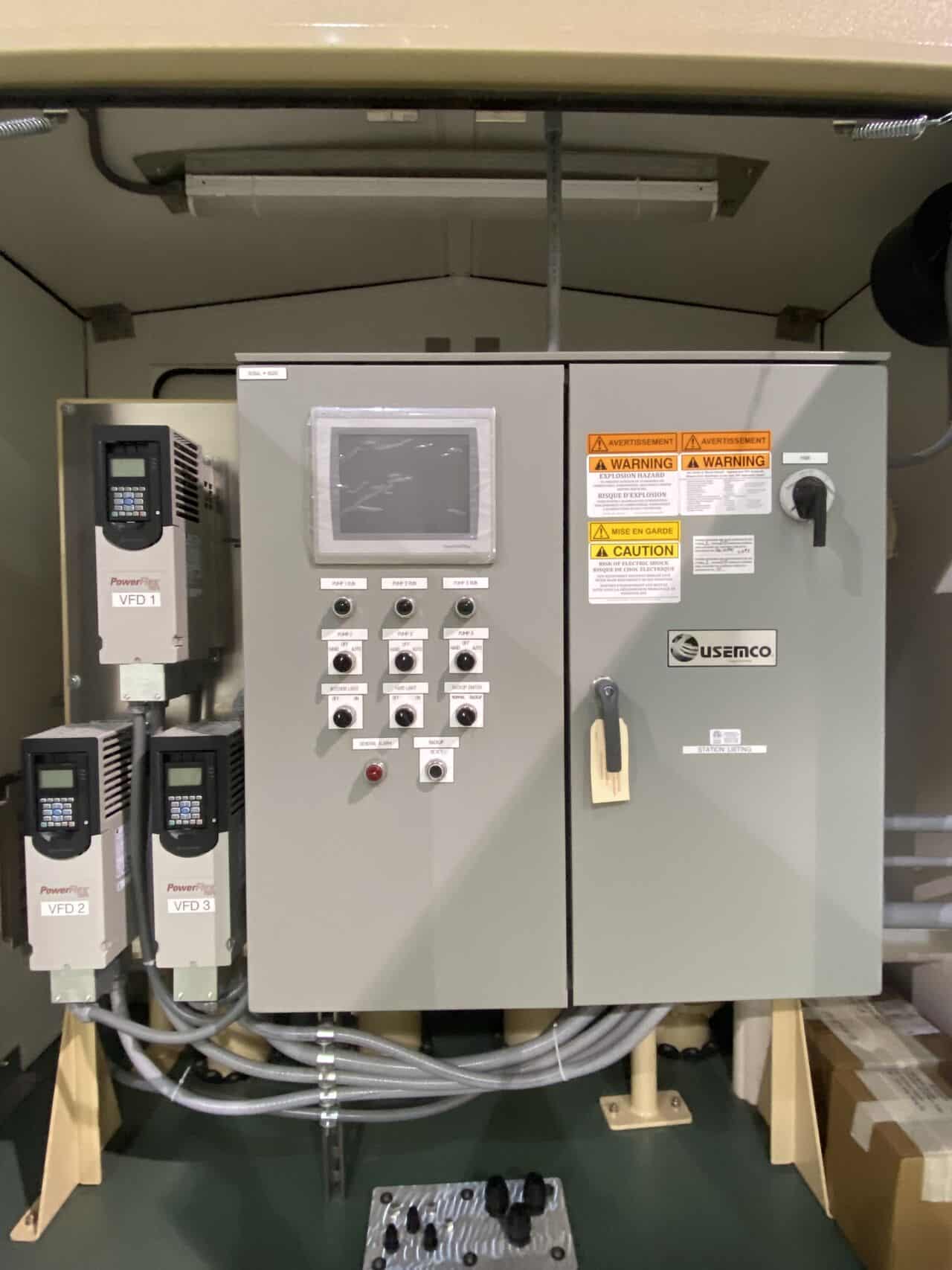

  • USEMCO Tall PumpMate showing the control panel of the station
  • USEMCO Tall PumpMate auto air release option
  • USEMCO Tall PumpMate emergency by pass pump connection
  • 20190528 091211 1 scaled - USEMCO
  • USEMCO Tall PumpMate hatch showing the safety grate

Tall PumpMate Options

Optional colors, coatings, and custom features are available to meet specific project requirements.

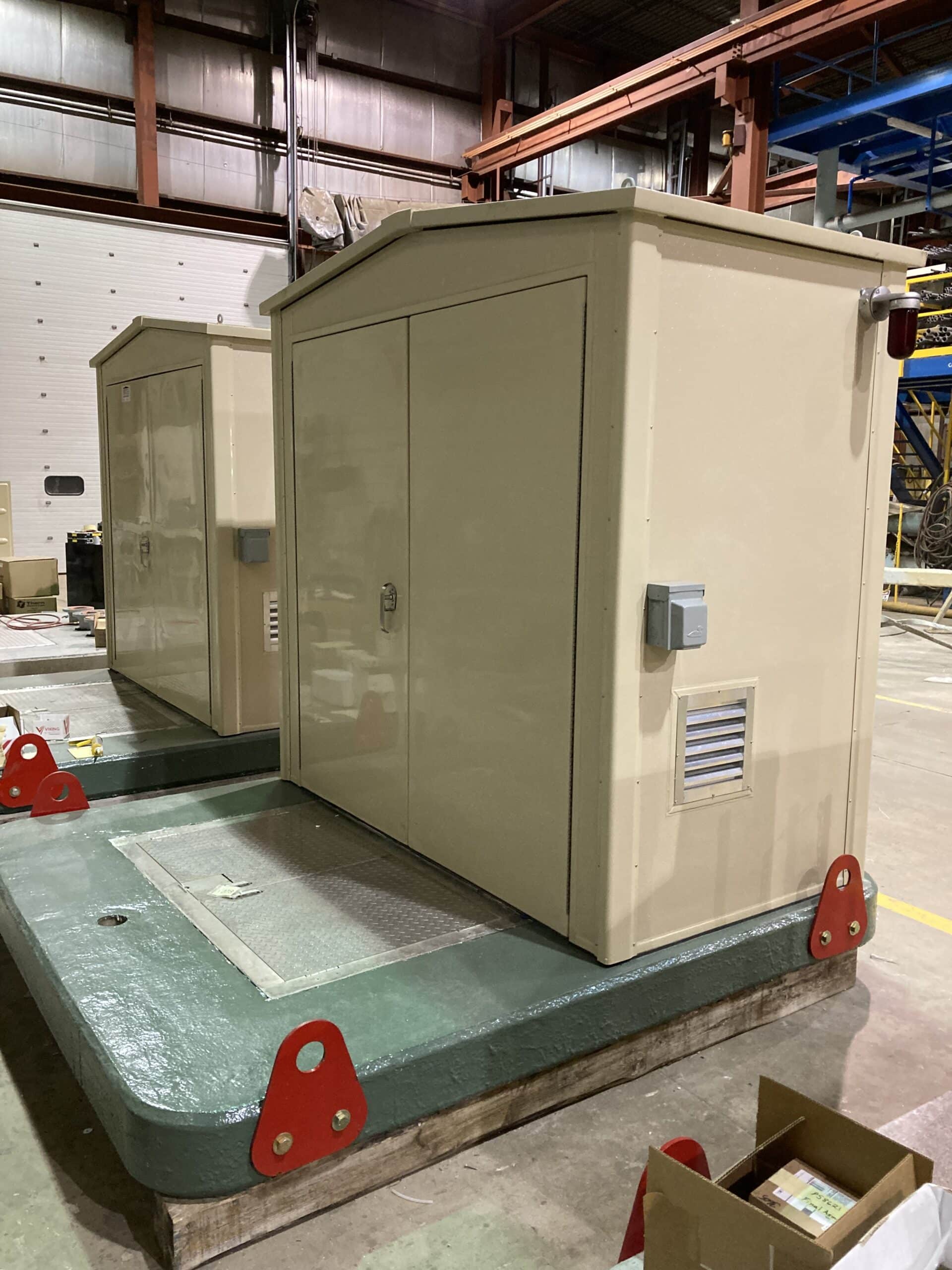

  • Fiberglass base coating

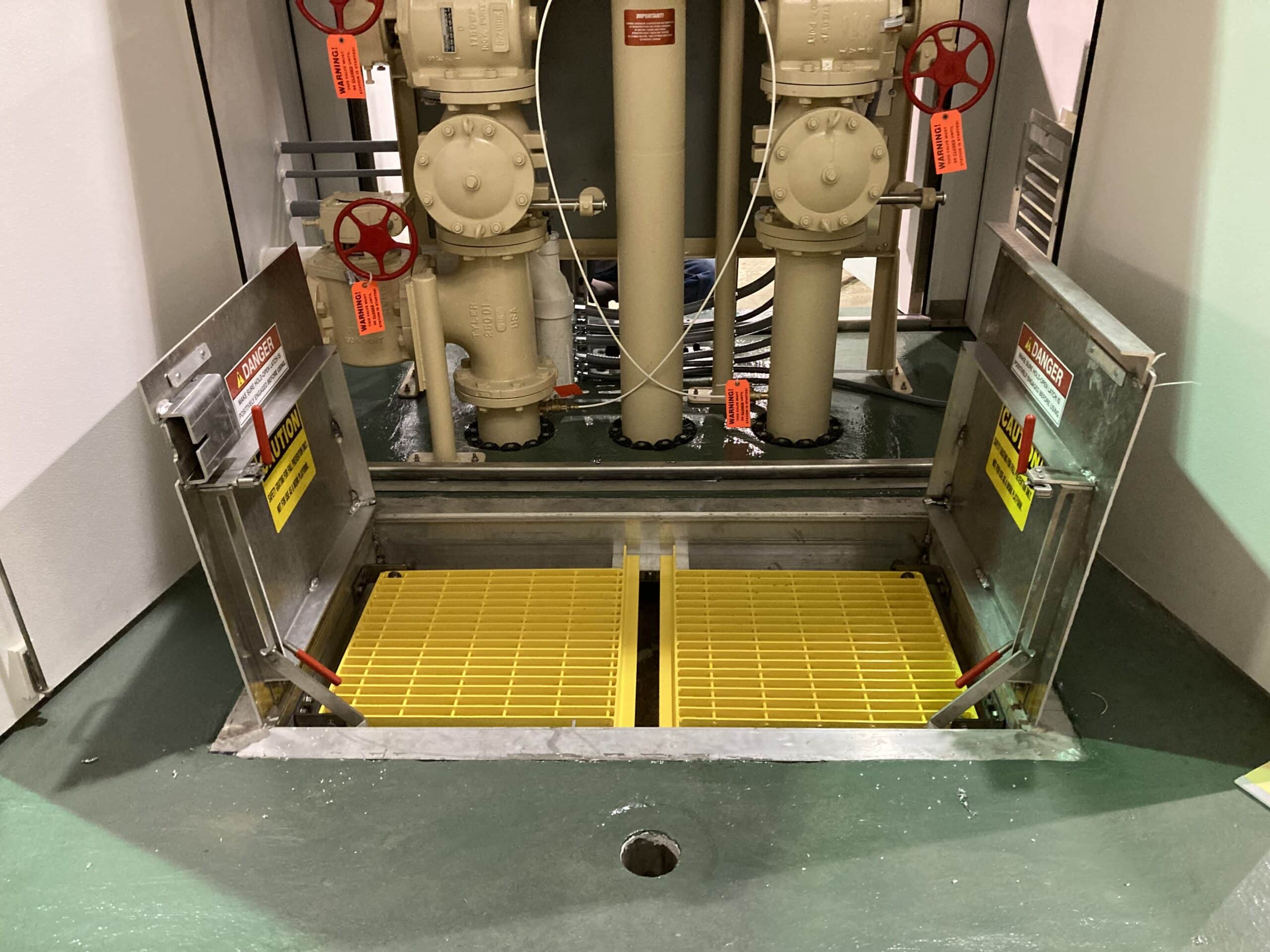

  • Safety grate

  • Flow meter

  • Air release valve

  • Discharge pressure gauge

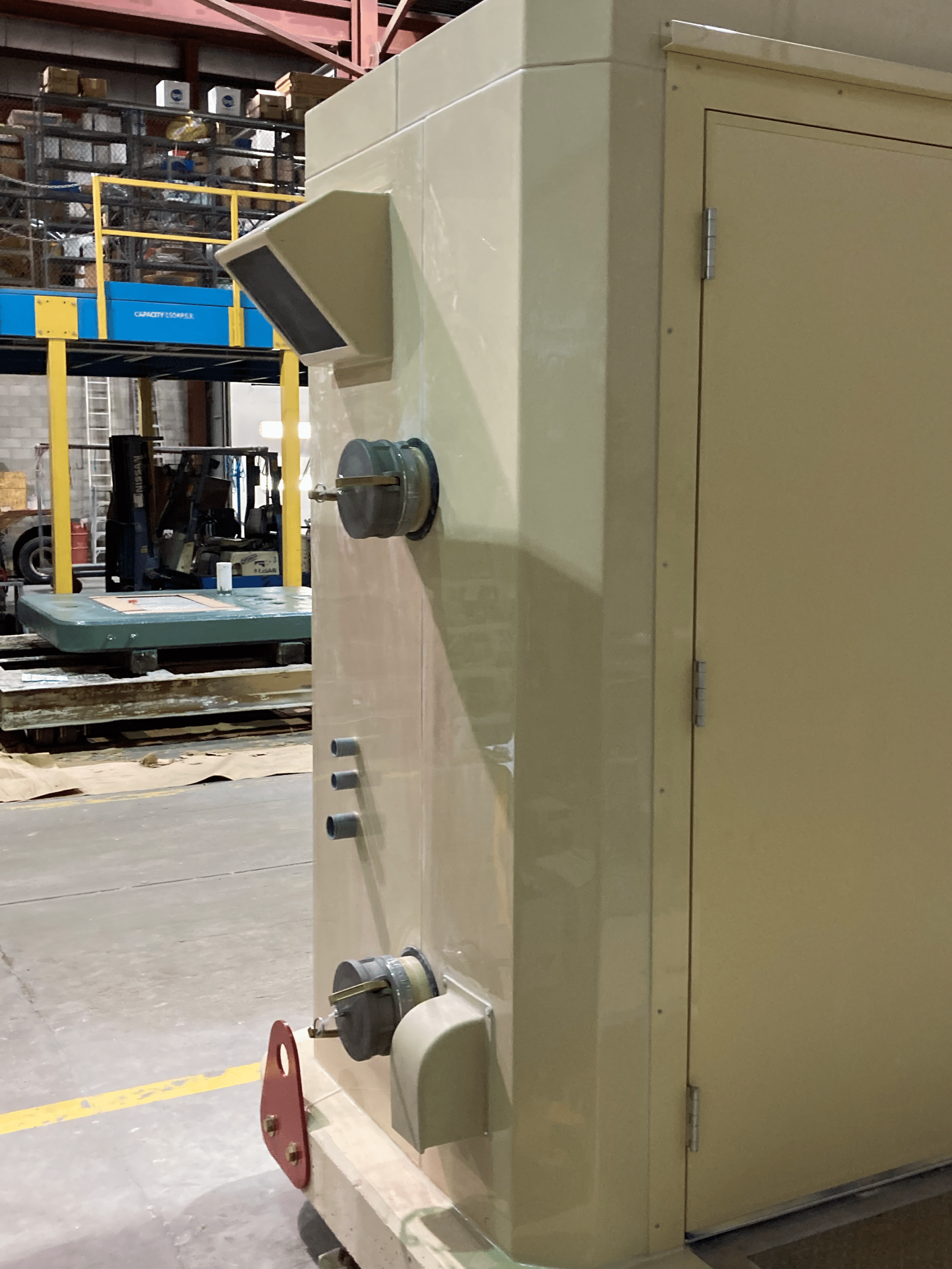

  • Emergency bypass pump connection

  • Generator and generator receptacle

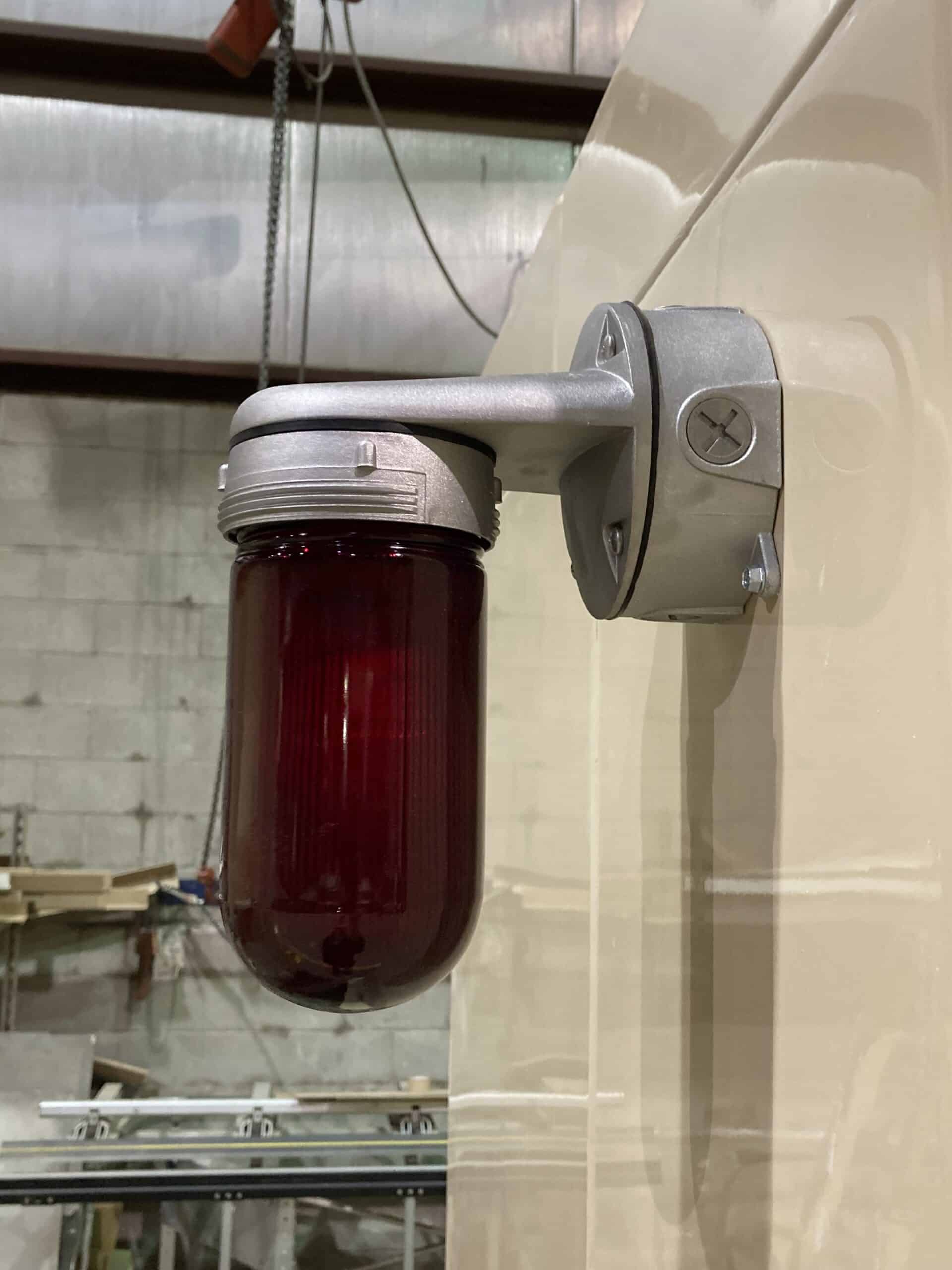

  • Low-temperature alarm, alarm light, horn and dialer

  • Hoist

  • SENTRY controller with transducer and float back up

  • Variable frequency drives

  • SCADA interface
